GO Classes DPP | COMPILER|EXPRESSION EVALUATION

233 views
1 1 vote

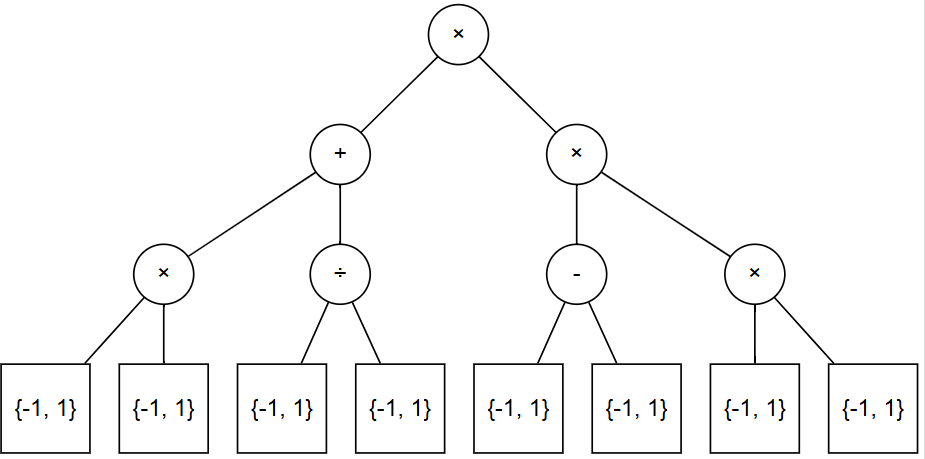

Consider the expression tree shown below. Each leaf represents a numerical value, which can be chosen from the set $\{-1,1\}$. Over all possible choices of the values at the leaves, what is the MAXIMUM possible value of the expressiog represented by the tree?

1 Answer

0 0 votes
  1. THE LEAVES (LEVEL 3) Each leaf can be either $-1$ or $1$.

  2. LEVEL 2 NODES (FROM LEFT TO RIGHT)
    • MULTIPLICATION NODE ($\times$): Possible values are $1 \times 1=1,(-1) \times(-1)=1$, or $1 \times (-1)=-1$.

      • Range: $\{-1,1\}$

    • DIVISION NODE ($÷$): Possible values are $1 / 1-1,(-1) /(-1)-1,1 /(-1)-1$, or $(-1) / 1--1$.

      • Range: $\{-1,1\}$

    • SUBTRACTION NODE ($-$): Possible values are $1-1=0,(-1)-(-1)=0,1$ -$(-1)=2$, or $(-1)-1=-2$.

      • Range: $\{-2,0,2\}$

    • MULTIPLICATION NODE ($\times$): Same logic as the first node.

      • Range: $\{-1,1\}$

  3. LEVEL 1 NODES
    • LEFT ADDITION NODE ($+$): Combines the first × node $\{-1,1\}$ and the ÷ node $\{-1,1\}$.

      • Maximum: $1+1=2$. Minimum: $-1+(-1)=-2$.

      • Range: $\{-2,0,2\}$

    • RIGHT MULTIPLICATION NODE ($\times$): Combines the - node $\{-2,0,2\}$ and the $x$ node $\{-1,1\}$.

      • Maximum: $2 \times 1=2$ or $-2 \times-1=2$.

      • Range: $\{-2,0,2\}$


    • THE ROOT NODE ($\times$) The root multiplies the results of the two Level 1 nodes. Both subtrees have a maximum possible value of $2$ and a minimum of $-2$.

      • To maximize the product: $2 \times 2=4$ or $(-2) \times(-2)=4$.
    Voting & Accepting an answer helps improve the community
    Answer:
