A max-heap is stored using $0$-based indexing as:

$$[60, 30, 45, 15, 5, 10, 20]$$

During the first iteration of heap sort:

  1. Swap the root with the last element.

  2. Reduce the heap size by $1$.

  3. Apply $\texttt{downHeap}$ on the remaining heap region.


What is the array after this first iteration?

  1. $[60, 30, 45, 15, 5, 10, 20]$

  2. $[45, 30, 20, 15, 5, 10, 60]$

  3. $[45, 30, 10, 15, 5, 20, 60]$

  4. $[30, 20, 45, 15, 5, 10, 60]$

1 Answer

1 1 vote

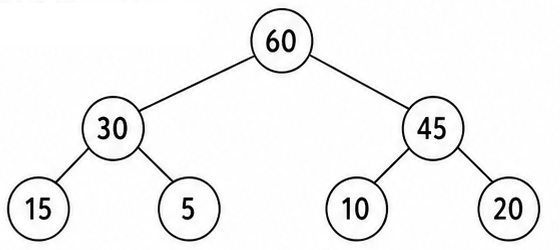

Initial max-heap:

Heap Array $:[60, 30, 45, 15, 5, 10, 20]$

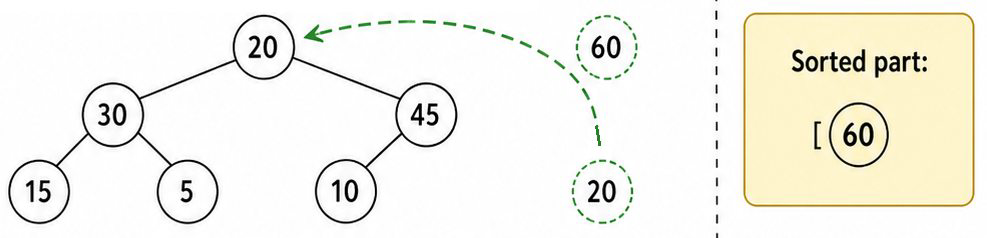

First, swap the root with the last element.

Heap Array $:[20, 30, 45, 15, 5, 10, 60]$

Now $60$ is in the sorted region, so heapify only the active heap:

Heap Array $:[20, 30, 45, 15, 5, 10]$

Heapify-down starts from index $0$.

Children of $20$ are $30$ and $45$.

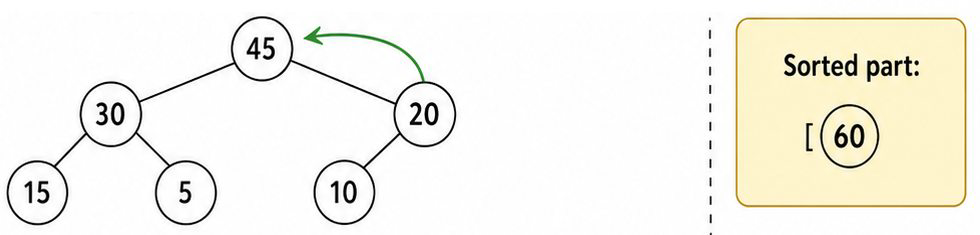

Since this is a max-heap, swap with the larger child $45$.

Heap Array $:[45, 30, 20, 15, 5, 10, 60]$

Now $20$ has only one child $10$ in the active heap. Since $20 > 10$, stop.

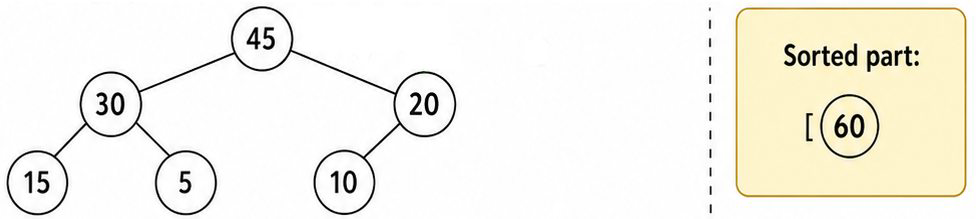

Final Heap Array $:[45, 30, 20, 15, 5, 10, 60]$


Answer: B
