A system has two processes, $P_1$ and $P_2$.

  • $P_1$ is currently running.

  • $P_2$ is ready.

  • The operating system uses preemptive Round Robin scheduling.

  • $P_1$'s scheduling quantum is about to expire.

  • $P_2$ will be selected to run next.


Consider the following events:

  1. $P_1$'s user-level state is saved into a trap frame.

  2. $P_2$'s user-level state is saved into a trap frame.

  3. A timer interrupt occurs.

  4. The operating system scheduler runs.

  5. A context switch occurs from the thread of $P_1$ to the thread of $P_2$.

  6. $P_1$'s user-level state is restored.

  7. $P_2$'s user-level state is restored.

  8. A system-call instruction is executed.

  9. The thread of $P_2$ is created.

  10. The thread of $P_1$ is destroyed.


Which sequence correctly describes the events?

  1. $3,1,4,5,7$

  2. $3,4,1,7,5$

  3. $1,3,5,4,7$

  4. $3,1,5,4,6$

1 Answer

0 0 votes

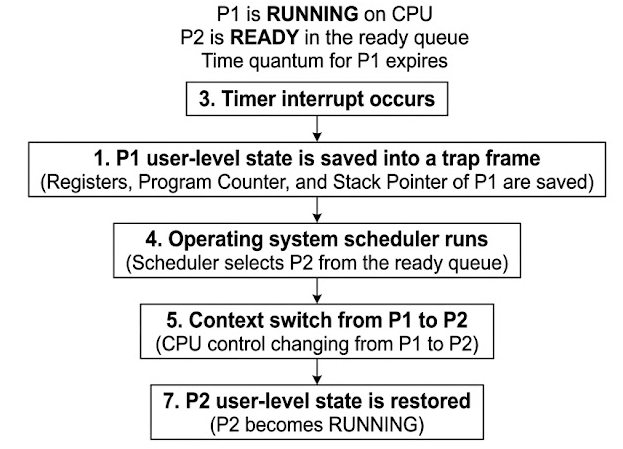

Initially, $P_1$ is running and $P_2$ is ready.

When the time quantum of $P_1$ expires, the following events occur in order:

First, the timer generates an interrupt.

$3.$ Timer interrupt occurs.


The current user-level state of $P_1$ must then be saved so that $P_1$ can resume later.

$1.$ $P_1$'s user-level state is saved into a trap frame.


The operating system scheduler now runs and selects the next process.

$4.$ The operating system scheduler runs.


Since $P_2$ is selected, a context switch occurs from $P_1$ to $P_2$.

$5.$ Context switch from $P_1$ to $P_2$.


Finally, the saved user-level state of $P_2$ is restored so that it can resume execution.

$7.$ $P_2$'s user-level state is restored.




Therefore, the correct sequence is:

$3 \rightarrow 1 \rightarrow 4 \rightarrow 5 \rightarrow 7$


Answer : A
