A disk block has size $4096\text{ bytes}$

Each record has the following fields, in order:

  • Real number $: 6\text{ bytes}$
  • Character string $: 17\text{ bytes}$
  • Timestamp $: 8\text{ bytes}$

Each record also has a header consisting of:

  • Pointer $: 4\text{ bytes}$
  • Pointer $: 4\text{ bytes}$
  • Date $: 10\text{ bytes}$

Every field must begin at a byte location that is a multiple of $\mathbf{4}$.

The block itself also contains a block header consisting of eight $\mathbf{4}$-byte integers.

What is the maximum number of records that can fit in one block?

1 Answer

1 1 vote

The two pointers take $4+4=8$ bytes.

The date requires $10$ bytes, but because of the alignment rule its occupied space is rounded up to the next multiple of $4:10\rightarrow12$

Hence record-header size $:4+4+12=20$ bytes.

Now, The real field needs $6$ bytes $:6\rightarrow8$

The character string needs $17$ bytes $:17\rightarrow20$

The timestamp already occupies a multiple of $4:8\rightarrow8$

Therefore, field storage is:

$8+20+8=36$ bytes.

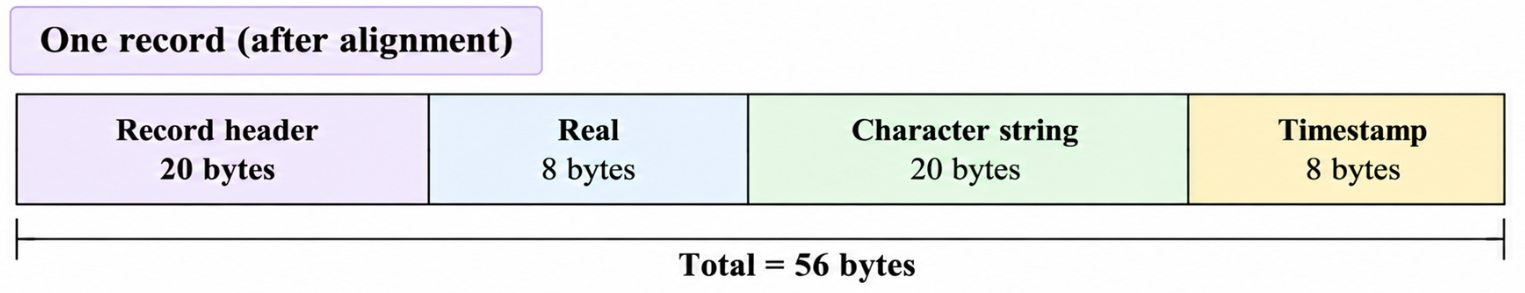

Total physical record size:

$20+36=56$ bytes.

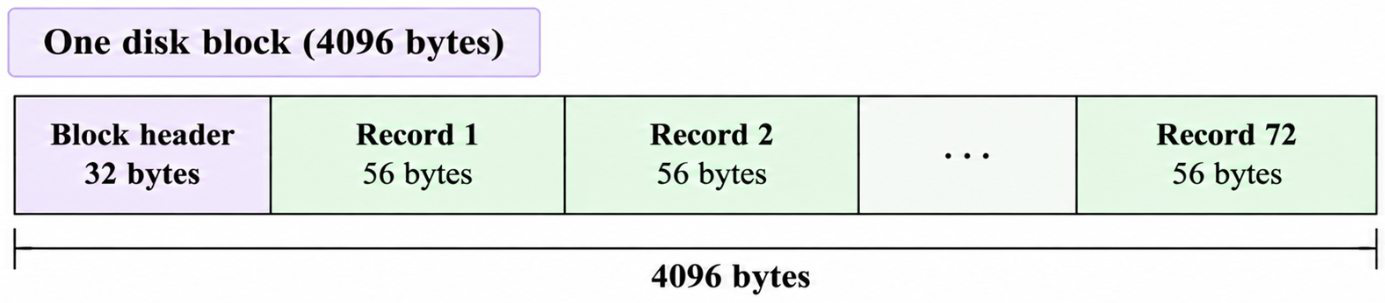

Now, There are eight $4$-byte integers:

$8\times4=32$ bytes.

So the space available for records is:

$4096-32=4064$ bytes.

Now,

$\left\lfloor\dfrac{4064}{56}\right\rfloor=\boxed{72}$
