Consider the language $L$ of arithmetic expressions over the alphabet $\{i d,+, *,()$,$\} , where id$ represents any identifier or number. An example string in the language is id * (id + id) .

Which of the following Context-Free Grammars that generate $L$ is ambiguous?


  1. $\begin{aligned}
    & E \rightarrow E+T \mid T \\
    & T \rightarrow T * F \mid F \\
    & F \rightarrow(E) \mid i d
    \end{aligned}$


  2. $\begin{aligned}
    & E \rightarrow T E^{\prime} \\
    & E^{\prime} \rightarrow+T E^{\prime} \mid \epsilon \\
    & T \rightarrow F T^{\prime} \\
    & T^{\prime} \rightarrow * F T^{\prime} \mid \epsilon \\
    & F \rightarrow(E) \mid i d
    \end{aligned}$


  3. $E \rightarrow E+E|E * E|(E) \mid i d$


  4. $E \rightarrow E+i d|E * i d| i d$

3 Answers

2 2 votes

C is ambigious
A is removing ambiguity by giving preference to * over + as per bodmas rule and made them left associativity
B.we removed left recursion  and made into right recursion whole grammar and priorities as per bodmas rule we do to parse for LL1
D.it is unambigious for given string but remember it doesnot generate all arithmetic expressions try arithmetic expression including bracket and it will fail

1 1 vote





1 flag:
✌ Low quality (Mihir27 “nonsense example”)
0 0 votes
c

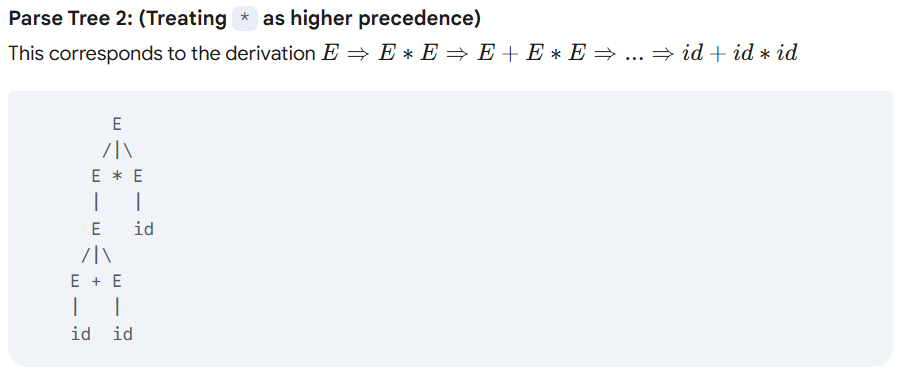

example :- id*id+id derives two different parse trees so its ambiguous
Voting & Accepting an answer helps improve the community
Answer:
