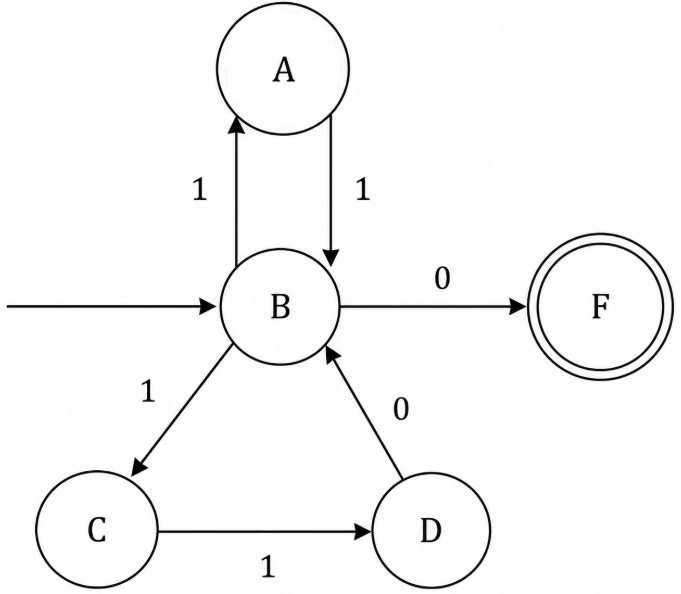

From state $B$, there are two cycles that bring the automaton back to $B$.

One cycle is $B \xrightarrow{1} A \xrightarrow{1} B$, which gives the block $11$.

Another cycle is $B \xrightarrow{1} C \xrightarrow{1} D \xrightarrow{0} B$, which gives the block $110$.

These blocks may repeat any number of times.

Finally, from $B$, the automaton goes to final state $F$ on input $0$.

Hence, the language is $(11+110)^*0$.

Answer : C

0 0 votes
  • here first shortest accepted string is 0
  • b as central hub it take 110 to go final state
  • b with A transition again take 11 strings now combing both
  • (11+110)*0
0 0 votes
To go to final state we need to be in B and then we need to get a zero.
From B if you get a 1 to can end up in one of two branches both of which end up in B, and then 0 can take you to final state.
From the options the only one that satisfies is C (11 + 110)*0

Answer: C
