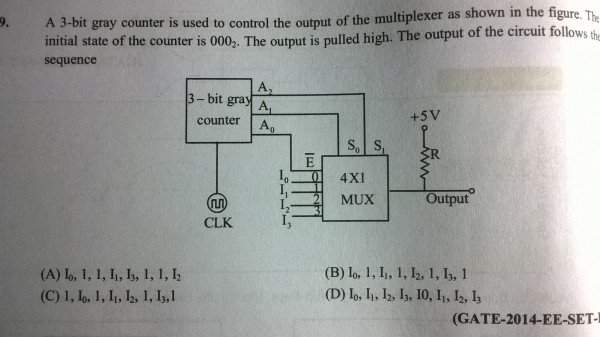

gate 14-EE 1

1,473 views

2 Answers

2 2 votes
present state   next state output of multiplexer
   000                      001                      I0
   001                      011                       1
   011                      010                       1
   010                      110                      I1
   110                      111                      I3
   111                      101                       1
   101                      100                       1
   100                      000                       I2

   all states are in gray format..
   A option..
