GATE CSE 1990 | Question: 7a

Question

A block-set associative cache memory consists of $128$ blocks divided into four block sets. The main memory consists of $16, 384$ blocks and each block contains $256$ eight bit words.

1. How many bits are required for addressing the main memory?
2. How many bits are needed to represent the TAG, SET and WORD fields?

Comments

"four block sets" phrase can be interpreted as

• four-block sets: Each set has 4 blocks.
• four block-sets: Number of sets are four.

How can one know the correct interpretation?

---

@commenter commenterfour block sets means  each set has four block

---

here in question some thing need to notice :-

1) here word is of 8bit  as they have written in question. means 1word=1bytes

2)here each set contain 4 block
---------------------------------------------------------------------------------------------------------------------------------------------------------
question 1) here main memory contain no of block =>16384=>2^14

and each block size is 256 word which is 256 bytes



means main memory size is 2^14*2^4=>2^22

so totol 22 bit required for adressing
-------------------------------------------------------------------------------------------------------------------------------------------
for question 2)

totol 22 bit for main memory and if direct associative  then division will happen like this => 7||7||8

now if each set contain 4 block then from direct mapped index no 2 bit will shift toward tag bit so

final adress division wil be like this =>9||5||8

---

1) 22-bits

Answer 1

For main memory, there are $2^{14}$ blocks and each block size is $2^8$ bytes (A byte is an eight-bit word)

1. Size of main memory $=2^{14}\times 2^8=4MB$ ( $22-\text{bits}$ required for addressing the main memory).
2. For WORD field, we require $8-\text{bits}$, as each block contains $2^8 $ words.

As there are $4$ blocks in $1$ set, $32$ sets will be needed for $128$ blocks. Thus SET field requires $5- \text{bits}$.

Then, TAG field requires $22-(5+8)= 9- \text{bits}$

$$\begin{array}{|c|c|c|} \hline \text {9-bits (for tag)} &  \text{5- bits (for set)}& \text{8-bits (for word)} \\\hline  \end{array}$$

Comments

How is main memory size 2^14

---

@bts1jimin,If you could see in the question it is clearly mentioned above 16,384 can be written as 2^14. That's how we derive the size as 2^14. Take like this:- 1024*16=2^10*2^4. I hope this now helps u. If haven't understood still,please comment. Yeah. :)

---

@kirti singh

Word field will have 8bits cuz block size is 2^8 words , not for cache memory having 128 blocks.

Answer 2

1.

Main memory addressing is always at the byte level (or word level depending on architecture), not at block level.

• Each byte (or smallest addressable unit = word in some systems) has a unique memory address.

 So, Size of main memory= $2^{14}$*$2^{8}$=$2^{22}$ . Hence, required 22 bits for addressing main memory.

2.

128 Cache blocks and 4 Block sets . Hence 32 sets . So 5 bits for rep set.

Block contains 256 B (given in que that each block contains 256 eight bit words.) . So 8 bits for rep Block offset. i.e, Word field

Remaining= 22-(5+8) = 9 . So 9 bits for Tag.

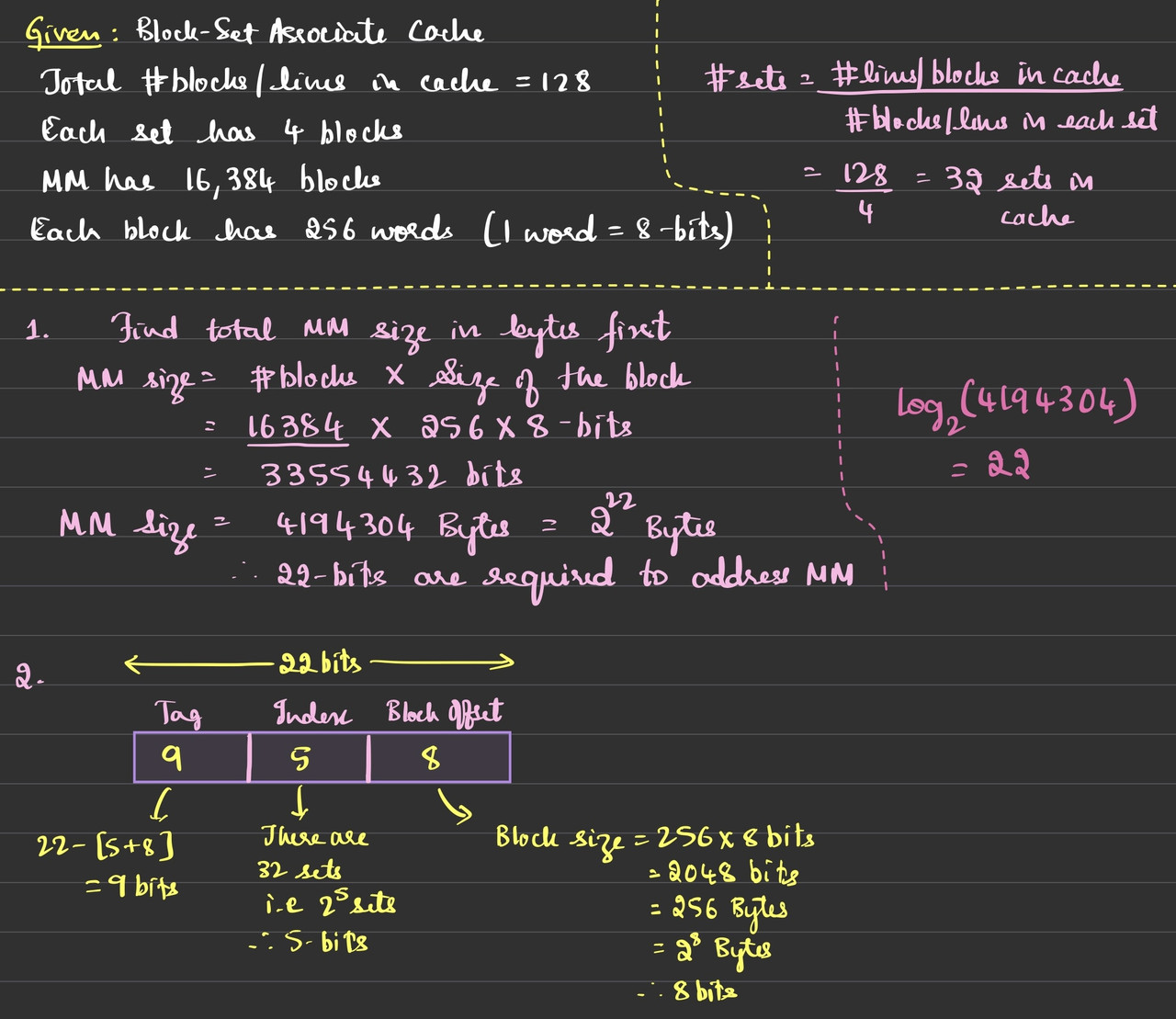

Answer 3
